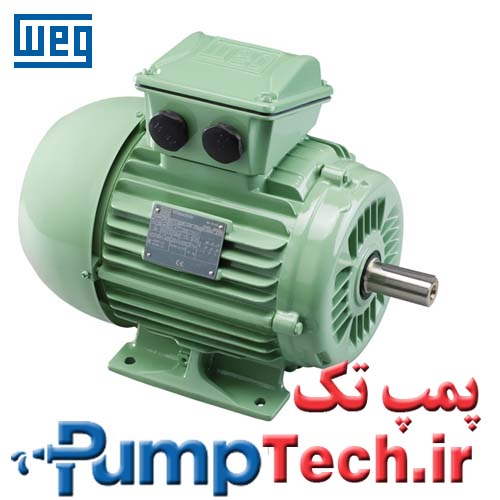

WQuattro
Environmentally friendly motor that due to its very efficient performance will demand less energy from the grid. Hybrid motor with squirrel cage rotor fitted with permanent magnets making it suitable for D.O.L. start.
Typical Applications
Applications that require super premium efficiency motors such as:
- Fans
- Conveyor belts
- Pumps
- Extruders
- Others
Standard Features
- Output: 0،37 up to 7،5 kW
- Frame: 80 up to 132S
- Insulation class: F
- Voltage: 230/400، 400/690 or 525 V
- Polarity: 4 and 6 poles
- Color: Ral 6021
- Squirrel cage rotor and high energy permanent magnets(NdFeB)
- Synchronous speed (operation)
- D.O.L. starting، as an induction motor
- Suitable for variable speed applications with scalar* or vector control
- W22 mechanical platform
- Exceeds IE4 efficiency levels
* Scalar control available only for motors driven by frequency inverter.
Options Available
- Same optional features available for W22 platform motor
