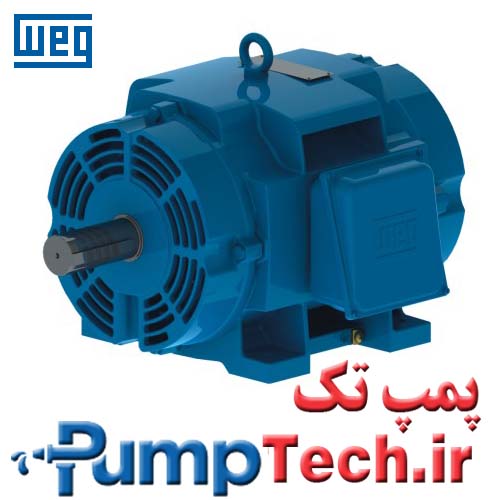

W40 - ODP - Cast Iron Frame - High Efficiency - IE2

کد	تاریخ	قیمت	تخفیف	توضیح کوتاه	اشتراک گذاری	سفارش
2024550	1394-10-12			الکتروموتور WEG برزیل ضدجرقه با کلاس مصرفی IE2 - پوسته چدن ساخت برزیل		سفارش

Since January 2015، IE2 motors placed onto the EU/EEA and rated at 7.5kW or above، must be used with a VSD unless their design falls outside of the scope of the EU Regulation or their final use will be outside of EU/EEA.

Standard Features

Output: 11 up to 560 kW
Number of poles: 2 and 4 poles
Frequency: 50 Hz
Frames: 160M up to 315G/F
Voltage: 380-415 / 660 V
Class “F” insulation (ΔT = 80K)
Squirrel cage rotor (Aluminium die cast)
Enclosure: ODP (Open Drip Proof) – IP23
Mounting: B3
Frame، end-shields and terminal box material: FC 200 cast iron
Cooling method: IC-01 according to DIN EN 60034-6
Ball bearings
Thermal protection: Thermistors (PTC)، one per phase
Color: RAL 5009
*For additional details about Inverter operation، please contact our technical support.
*Special Insulation for voltages above 575V

Optional Available

Cable glands
Class “H” insulation
Thermistors (PTC)، one per phase in windings for frame size 160L and up
Space heaters
Roller bearings
Special voltages
More options available، on request

Typical Applications

Pumps
Fans
Kneader and mixer machines
Cutting and sawing machines
Pressing machines
Industrial equipment
Conveyor belts
Blowers
Compressors
Cranes
Packaging equipment
Other severe duty applications
