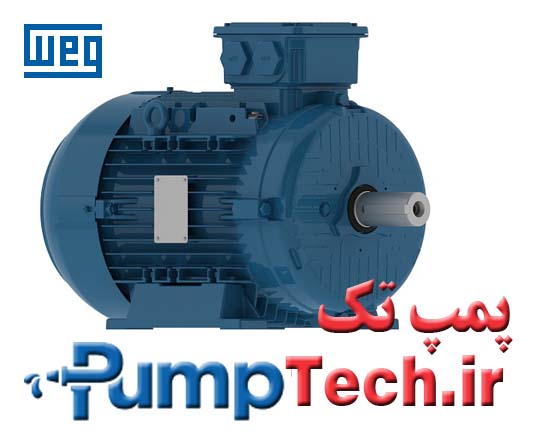

W11 - Aluminium Frame - High Efficiency - IE2

کد	تاریخ	قیمت	تخفیف	توضیح کوتاه	اشتراک گذاری	سفارش
2024542	1394-10-11			الکتروموتور WEG برزیل ضدجرقه با کلاس مصرفی IE2 - پوسته آلومینیوم ساخت برزیل		سفارش

W11 - Aluminium Frame - High Efficiency - IE2

Since January 2015، IE2 motors placed onto the EU/EEA and rated at 7.5kW or above، must be used with a VSD unless their design falls outside of the scope of the EU Regulation or their final use will be outside of EU/EEA.

Standard Features

Three-phase، multivoltage، IP55، TEFC
Output: 0.12 up to 11 kW
Frames: 63 up to 132M
Voltage: 220-240/380-415V (up to 100L) / 380-415/660-690V (from 112M and above)
Class “F” insulation (ΔT = 80K)
Continuous duty: S1
Design N
Degree of protection: IP55
Ambient temperature: 40 °C، at 1000 m.a.s.l
Squirrel cage rotor/Aluminium die cast
Stainless steel nameplate
Dimensions according to IEC 60072
Performance characteristics according to IEC 60034
Color: RAL 5009

Optional Features

Canopy for vertical application
Space heaters
Thermal protection
Other mounting configurations

Multimounting

WEG aluminium frame motors with removable base were specially designed to meet market requirements in reference to mounting flexibility once they allow all mounting positions.

The foot mounting system offers great flexibility and it is quite simple allowing change on the mounting configuration without requiring any machining or modification on the motor feet. Motor terminal box can also be rotated at 90 degrees allowing motor leads to be connected on any motor side.
