W21 - Aluminium Frame - Premium Efficiency - IE3


کد تاریخ قیمت تخفیف توضیح کوتاه اشتراک گذاری سفارش
2019539 1394-10-11 الکتروموتور WEG برزیل ضدجرقه با کلاس مصرفی IE3 - پوسته آلومینیوم ساخت برزیل Bookmark and Share سفارش

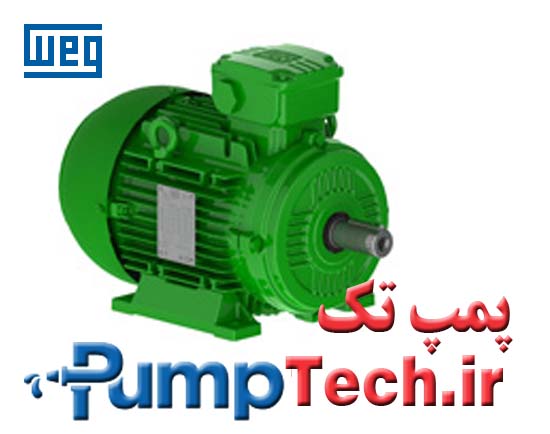

W21 - Aluminium Frame - Premium Efficiency - IE3

Premium efficiency aluminum frame IP55 motor complying with IE3 efficiency levels according to IEC60034-30.



Typical Application

  • Pumps
  • Fans
  • Crushers
  • Conveyor belts
  • Mills
  • Centrifugal machines
  • Presses
  • Elevators
  • Packaging equipment
  • Grinders and others

Standard Features

  • Three-phase، multivoltage، IP55، TEFC
  • Output: 0،12 up to 37 kW
  • Frames: 112 up to 200M/L
  • Voltage: 220-240/380-415V (up to 100L) / 380-415/660V (from 112M and up)
  • Class “F” insulation (ΔT = 80K)
  • Continuous duty: S1
  • Design N
  • Ambient temperature: 40 °C، at 1000 m.a.s.l
  • Squirrel cage rotor/Aluminium die cast
  • Thermal Protection (Thermistors) on windings fortripping at 155 °C for frames 160L to 200L
  • Stainless steel nameplate
  • Dimensions according to IEC 60072
  • Performance characteristics according to IEC 60034-30
  • Color: RAL 6002

Optional Available

  • Non-drive end shaft
  • Bearing sealing
  • Shaft dimensions to customer requirements
  • Canopy for V1 applications
  • Special painting
  • Space heaters
  • Thermal protection (thermistors)
  • Class “H” insulation
  • Other mounting configurations
  • Other modifications، on request

Mounting Information

WEG multivoltage aluminium frame motors with removable base were specially designed to meet market requirements in reference to mounting flexibility once they allow all mounting positions.

The foot mounting system offers great flexibility and it is quite simple allowing change on the mounting configuration without requiring any machining or modification on the motor feet. Motor terminal box can also be rotated at 90 degrees allowing motor leads to be connected on any motor side.

Besides that، these motors are fully interchangeable with the existing cast iron frame motors. These multivoltage aluminium frame motors are available in frame sizes 112M، 132S، 132M، 160M/L، 180M/L and 200M/L.
